How Quadcopters Achieve Stable Flight

When considering how quadcopters achieve stable flight, you might initially focus on the four propellers rotating in opposite directions, but there’s much more to it. The flight controller plays a crucial role, processing sensor data to make real-time adjustments. By integrating data from gyroscopes, accelerometers, and magnetometers, the system ensures smooth flight, counteracting external forces like wind.

Variations in thrust control pitch, roll, and yaw movements, maintaining stability and maneuverability. Environmental factors such as altitude, temperature, and humidity also impact performance, requiring the system to adapt for optimal flight conditions.

Let’s examine how these elements interact for peak performance.

Components of a Quadcopter

quadcopter component breakdown

A quadcopter features four propellers, each rotating in opposite directions to maximize lift and stability. This propulsion system works in tandem with the flight controller to provide precise control over the aircraft.

Unlike traditional aircraft, quadcopters don’t have control surfaces like ailerons or rudders. Instead, they adjust the rotation speed of the propellers to control pitch, roll, and yaw.

The flight controller serves as the brain of the quadcopter, processing data from various sensors, including gyroscopes, to adjust the propellers’ speeds accordingly. Proper weight distribution is crucial, as uneven weight can cause instability and unpredictable flight behavior.

The aerodynamic design of the propellers enhances efficiency and lift, contributing to smoother and more controlled flights.

Battery capacity significantly impacts the flight duration and power available for the propulsion system. Control electronics manage power distribution and communication between components, ensuring harmonious operation.

Role of the Flight Controller

To understand what keeps a quadcopter stable in flight, focus on the flight controller. This crucial component processes sensor data and makes real-time adjustments to motor thrust, ensuring the quadcopter remains balanced and responsive.

Without these continuous corrections, even minor discrepancies could lead to instability.

Sensor Data Integration

Effective sensor data integration is crucial for a flight controller to maintain a quadcopter’s stability. The flight controller relies on several sensors, such as the gyroscope, accelerometer, and magnetometer, to monitor the quadcopter’s attitude, orientation, and rate of change. By integrating this sensor data, the flight controller can make rapid adjustments to motor thrust, ensuring the quadcopter remains stable.

Here’s how the flight controller uses data from different sensors:

  1. Gyroscope: Measures the quadcopter’s rotation rates, helping to compare the actual orientation with the desired attitude.
  2. Accelerometer: Detects linear acceleration, which is essential for maintaining balance and level flight.
  3. Magnetometer: Provides heading information by measuring the Earth’s magnetic field, assisting in navigation and orientation.
  4. Sensor Data Integration: Combines inputs from all sensors to adjust motor thrust multiple times per second, maintaining stability.

When these sensors work together, the flight controller can quickly assess the quadcopter’s status and make necessary changes. For instance, if the gyroscope detects an unwanted roll, the flight controller will adjust the motor thrust on the appropriate rotors to counteract this movement. This seamless integration of sensor data is what keeps your quadcopter flying smoothly.

Real-time Adjustments

The flight controller continuously adjusts motor thrust in real-time to maintain your quadcopter’s stability and responsiveness. Acting as the drone’s brain, it rapidly fine-tunes each motor’s thrust to ensure stable flight, as even minor discrepancies can cause instability.

High-quality flight controllers, like the Scout Flight Controller, make adjustments up to 250 times per second. Some off-the-shelf controllers can even perform these adjustments several thousand times per second, ensuring maximum stability.

This rapid response allows your quadcopter to adapt instantly to wind gusts, shifts in weight distribution, or sudden directional changes.

Motor Thrust Adjustments

precise rocket engine control

Adjusting motor thrust is crucial for quadcopters to maintain stability and perform precise maneuvers during flight. Constantly adjusting motor thrust allows quadcopters to achieve the balance and control required for stable flight dynamics. These adjustments are essential for stability, responding to pilot commands, and counteracting external forces.

Here’s how motor thrust adjustments enhance quadcopter stability and control:

  1. Maintaining Balance: Quadcopters must balance the thrust from each motor to remain level. Uneven thrust causes tilting, making motor thrust adjustments vital for stability.
  2. Responding to Pilot Inputs: The quadcopter’s flight controller adjusts motor thrust to execute commands such as climbing, descending, and turning.
  3. Counteracting External Forces: Wind and other external forces can destabilize a quadcopter. Rapid thrust adjustments counteract these forces, ensuring smooth flight.
  4. Enabling Precision: For precise maneuvers, motor thrust adjustments provide fine-tuning, allowing the quadcopter to hover accurately, navigate tight spaces, and perform complex movements.

Pitch, Roll, and Yaw Control

Quadcopters achieve stable flight by precisely controlling pitch, roll, and yaw through varying motor thrust. These three axes of movement are crucial for maintaining the aircraft’s orientation and maneuverability.

Adjusting the thrust of each rotor directly influences the quadcopter’s pitch, allowing it to move forward or backward. By increasing thrust on one side and decreasing it on the other, you control the roll, enabling side-to-side movement.

Yaw, or rotation around the vertical axis, is managed by varying thrust between the clockwise and counterclockwise rotating motors. This adjustment allows the quadcopter to rotate left or right, changing its orientation without altering its position.

Each of these controls—pitch, roll, and yaw—is essential for stable flight and effective maneuverability.

Real-time adjustments in motor thrust keep the quadcopter stable and responsive to commands. Without precise control of pitch, roll, and yaw, the quadcopter would struggle to maintain its orientation and achieve the smooth, stable flight necessary for various applications.

Mastering these controls is key to unlocking the quadcopter’s full potential.

Sensor Integration

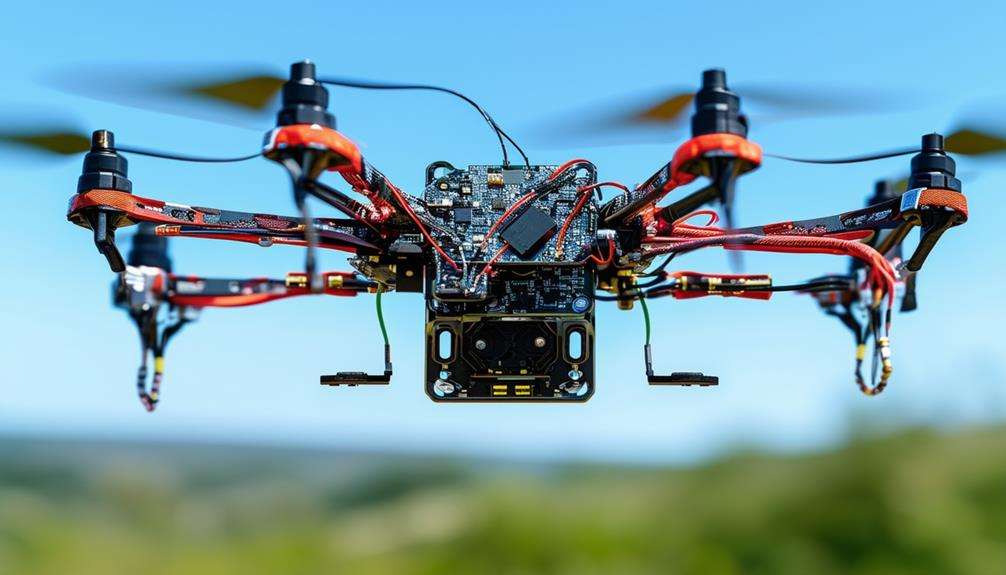

sensor data collection technology

Integrating sensors such as accelerometers, gyroscopes, and magnetometers is crucial for achieving stable and responsive flight in quadcopters. These sensors are essential for maintaining stability and orientation control, ensuring smooth operation under various conditions.

  1. Accelerometers: These sensors measure acceleration forces, helping to determine the quadcopter’s orientation. By providing real-time data on tilt and movement, accelerometers keep the quadcopter balanced and stable.
  2. Gyroscopes: Gyroscopes detect changes in angular velocity, allowing the quadcopter to adjust motor thrust to maintain stability. This capability is essential for keeping a steady flight path, even during sharp turns or sudden movements.
  3. Magnetometers: Magnetometers provide information on the magnetic field, aiding in orientation control by acting as a digital compass. This ensures the quadcopter knows its heading and can maintain the correct direction.
  4. Sensor Fusion: By combining data from accelerometers, gyroscopes, and magnetometers, sensor fusion enhances flight stability. This integration of multiple data streams gives a comprehensive understanding of the quadcopter’s position and movement, leading to more precise control.

Using these sensors in concert allows for precise adjustments and consistent flight performance. Sensor integration not only maintains stability but also optimizes the quadcopter’s responsiveness, ensuring a seamless flying experience.

Environmental Factors

Environmental factors significantly impact the stability and performance of quadcopters during flight. Wind conditions, for example, can drastically affect stability. Strong winds or sudden gusts can push a quadcopter off course, necessitating rapid adjustments in motor thrust and flight controls to maintain stable flight. Monitoring wind speed, direction, and turbulence is crucial to ensure a steady flight.

Other critical environmental factors include altitude, temperature, and humidity. As altitude increases, air density decreases, affecting motor thrust and overall quadcopter dynamics. Temperature fluctuations can influence battery performance, while high humidity levels may cause condensation on sensors and motors, potentially leading to malfunctions.

Being mindful of these environmental variables is essential for maintaining quadcopter stability. Constantly adjusting flight control inputs to adapt to changing conditions ensures the quadcopter operates efficiently and safely.

Understanding these factors allows for informed decision-making, resulting in smoother and more stable flights. Mastering the influence of environmental factors equips you to achieve successful mission outcomes consistently.

Conclusion

Quadcopters achieve stable flight through a combination of advanced technology and real-time adjustments. A sophisticated flight controller orchestrates precise motor thrust adjustments, ensuring balance and maneuverability. Key sensors such as gyroscopes, accelerometers, and magnetometers provide essential data, while environmental factors like altitude and wind are carefully managed.

The next time you see a quadcopter soaring smoothly, you’ll understand it’s the result of a finely-tuned system working seamlessly together.
